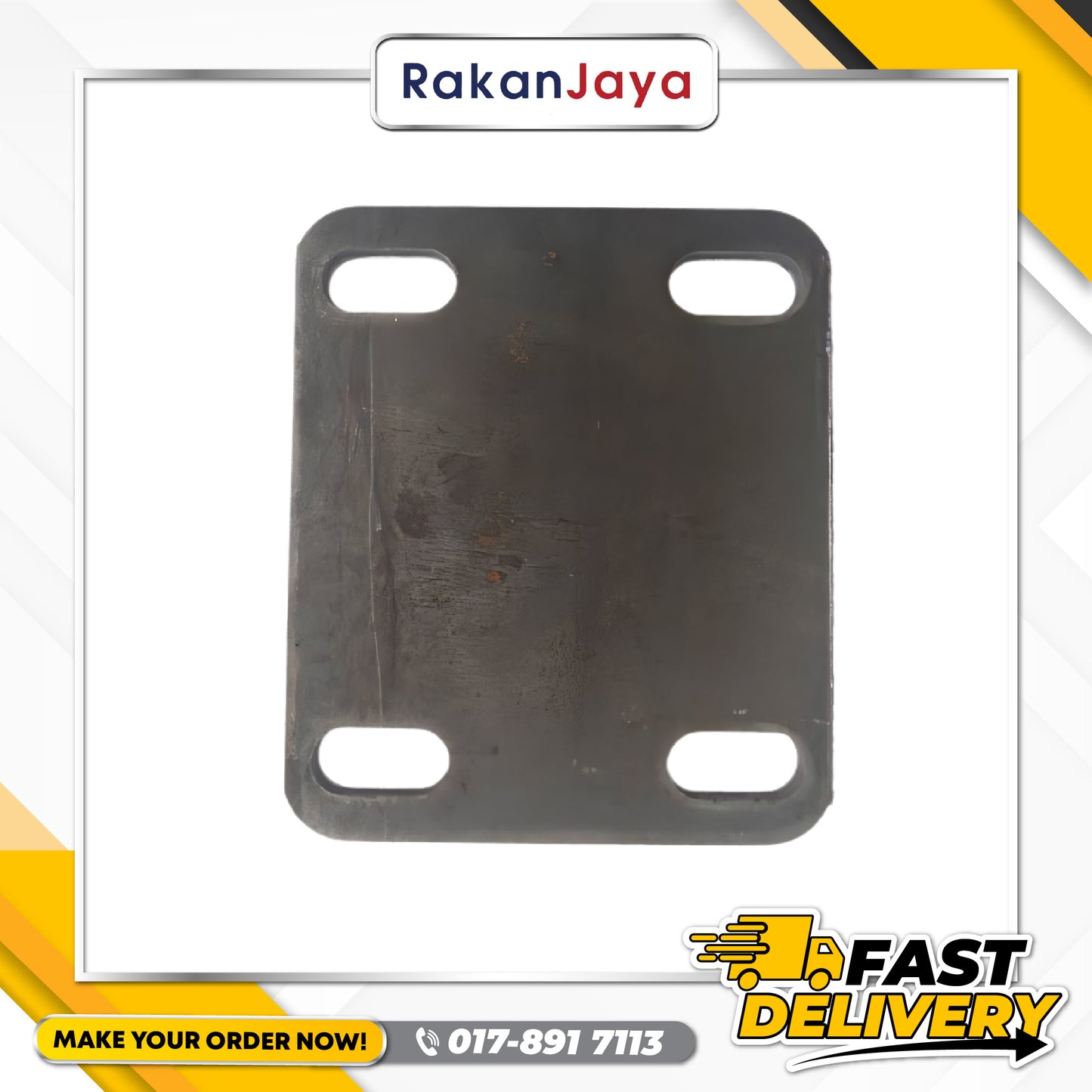

BASE PLATE

• Base Plate for Steel Column
• Those portions of the plate which project from the column shaft act as cantilever beams
• Since the sections of zero share, and consequently of maximum moment, in the bearing plates are inside the area of ​​contact between the column shaft and plate, the length of the cantilevered portions are usually assumed to be longer than the actual projection of the plate

Size : 4" x 5"
