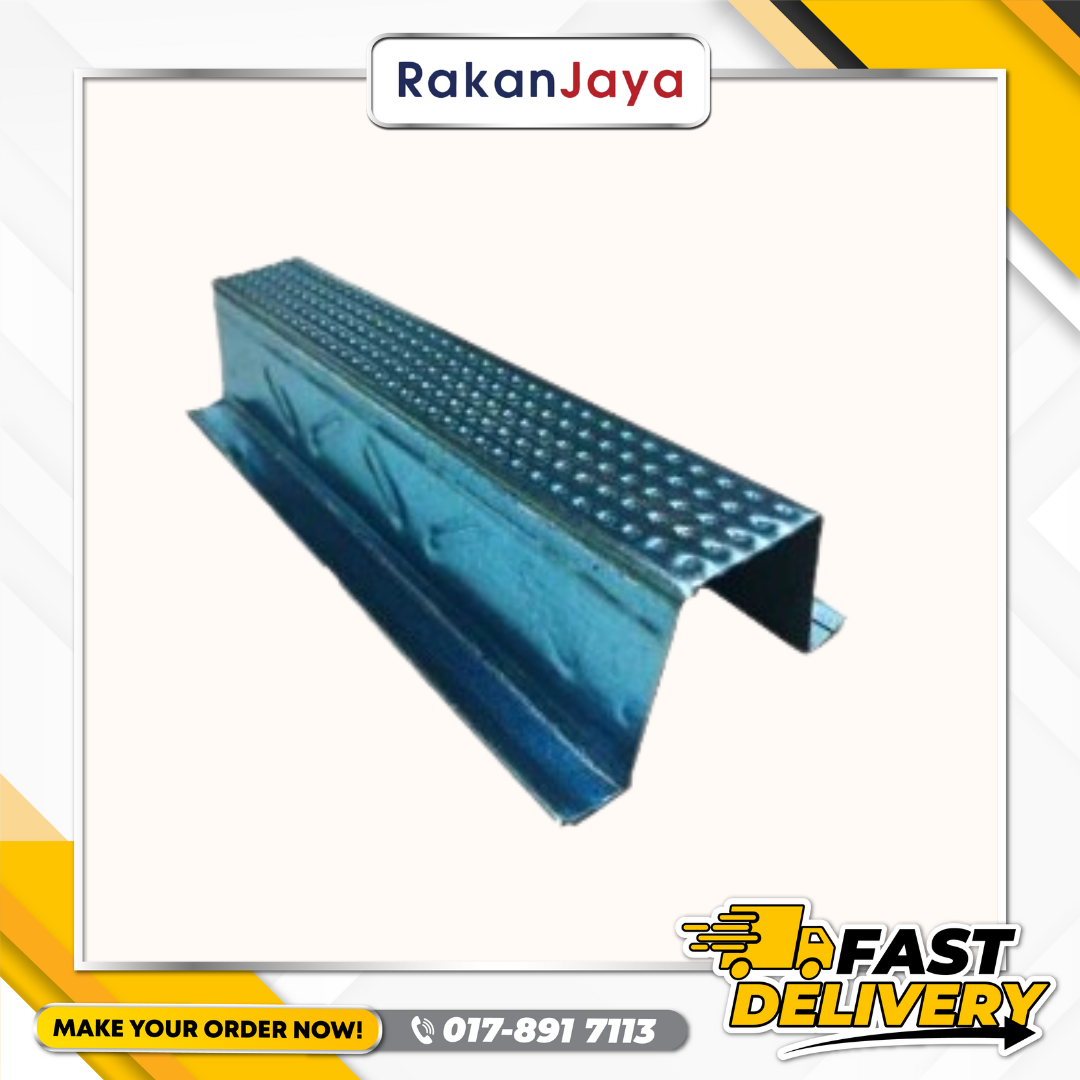

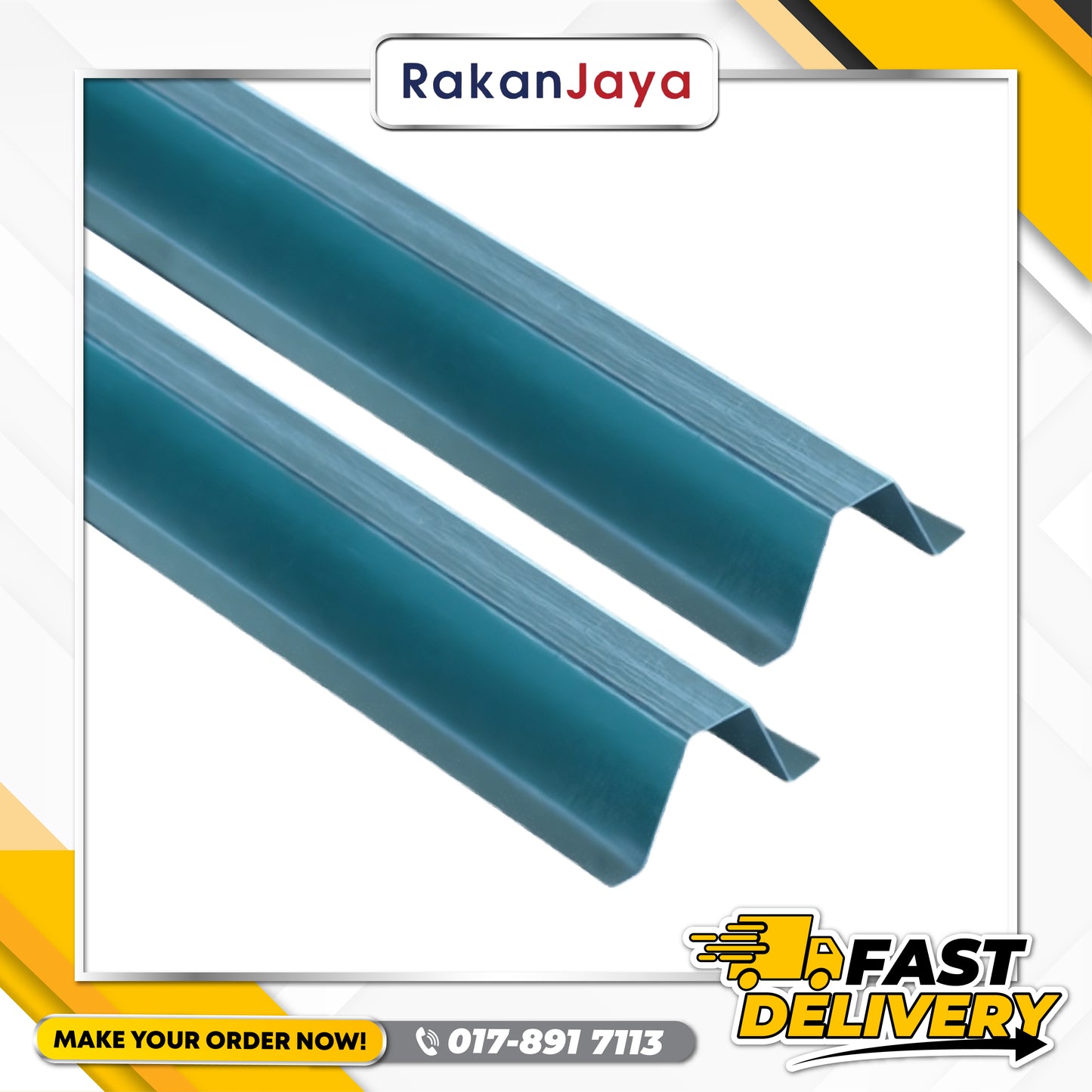

BESI BIRU BATTEN B110 & B121 (ASTINO)

* Untuk sebarang pertanyaan atau maklumat lanjut, sila hubungi kami di: 01163287113 *

BESI BIRU BATTEN B110 & B121

PACKAGE:
(1) Loose = Harga sebatang
(2) Bundle = Harga 100 batang

Description

• Size: 63.0mm x 26.0mm x 32.0mm 0.48mm (T) x 6.0m (L).
• Thickness : 0.48mm.
• Weight/Length : 0.51kg/m.
• Material : Aluzinc.

Introduction

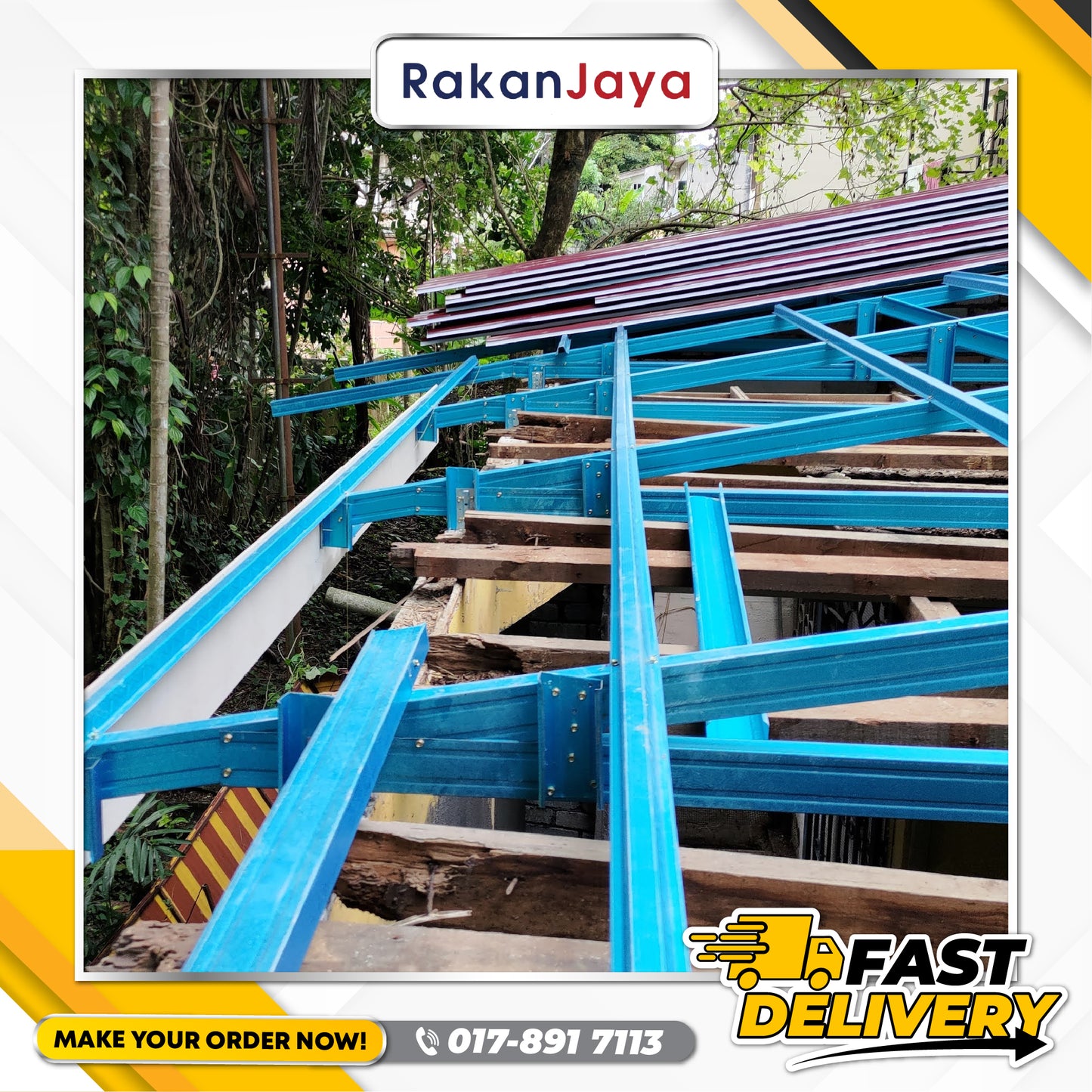

Astino Multi Truss and Battens are cold-rolled sections manufactured from structure grad galvanized steel. It provides builder with a high quality, strong, dimensionally stable and light steel section which is ideal for roofing applications. Its unique configuration delivers superior strength, stiffness and increased load capacity producing significant economies in both design and installations.

Tolerances

Astino Multi Trusses are produced within the following tolerance:

• Length : ±5mm.
• Web (Dim.H) : ±1mm.
• Flange (Dim.B) : ±2mm.
• Thickness : ±2mm.
