KI TOOLS HAND OPERATED HYDRAULIC PUMPS

Description

FEATURES :

Working pressure is at 700bar. All hand-operated hydraulic pumps are one-way single-acting applications. These models come standard with 1.8mtr length high-pressure hose. KI-HP700B comes with a pressure gauge and gauge adaptor.

• Robust, durable and compact.
• Two-speed hydraulic system for fast and easy operations.
• Lower handle effort to minimize operator fatigue.
• Large and comfortable release knob for improved control of pressure release.
• Internal pressure relief valve for overload protection.
• Supplied with R2 3/8 male coupler and dust cap.

AVAILABLE MODELS :

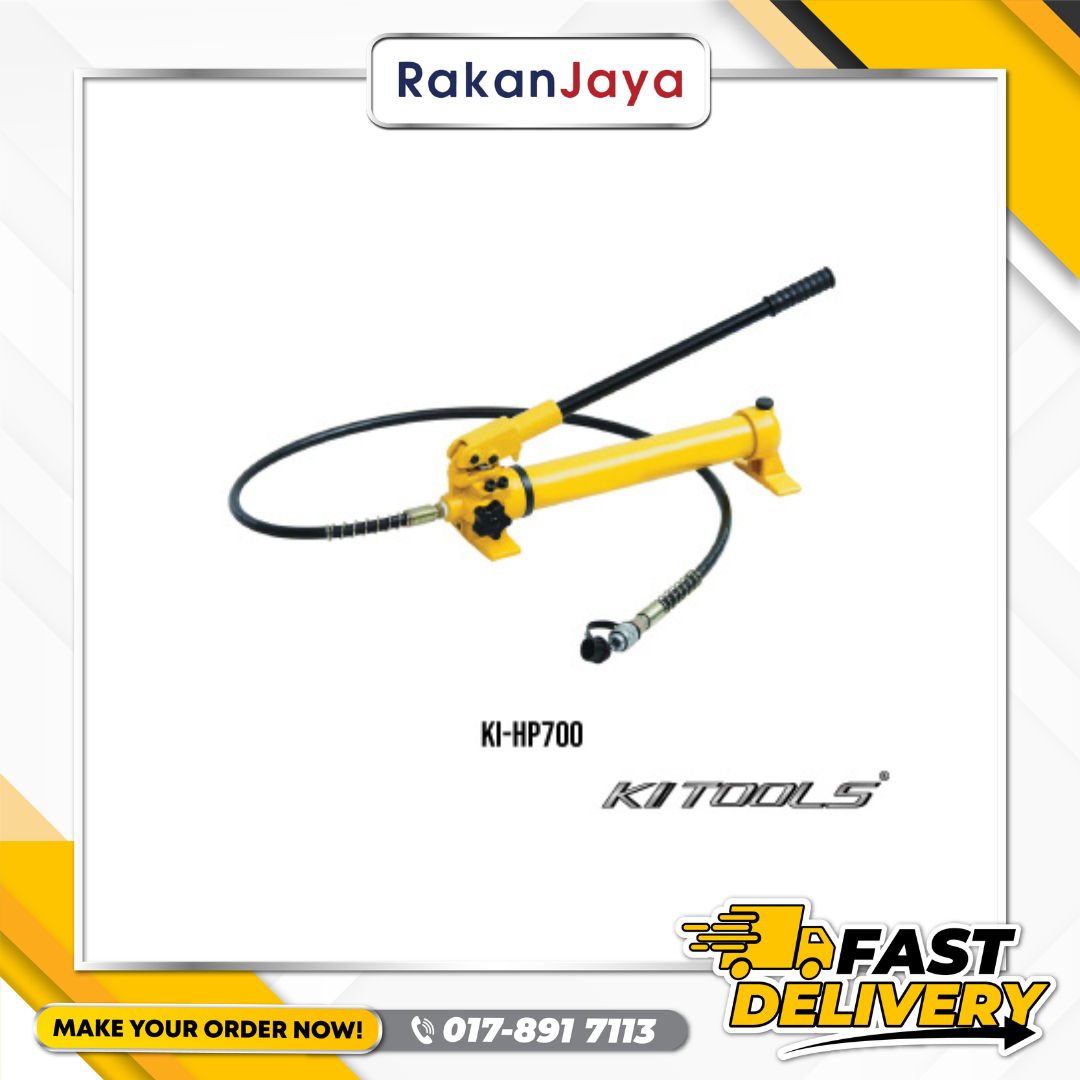

KI-HP700

• Working Pressure : Low Pressure Stage 20 bar / High Pressure Stage 700 bar
• Oil displacement per stroke : Low Pressure Stage 13cm³ / High Pressure Stage 2.3cm³
• Reservoir : Oil capacity 1000cm³ /Useable Oil Capcity 700cm³
• Dimension : 600mm (L) x 120mm (B) x 200mm (H)
• Weight : 10.6kg

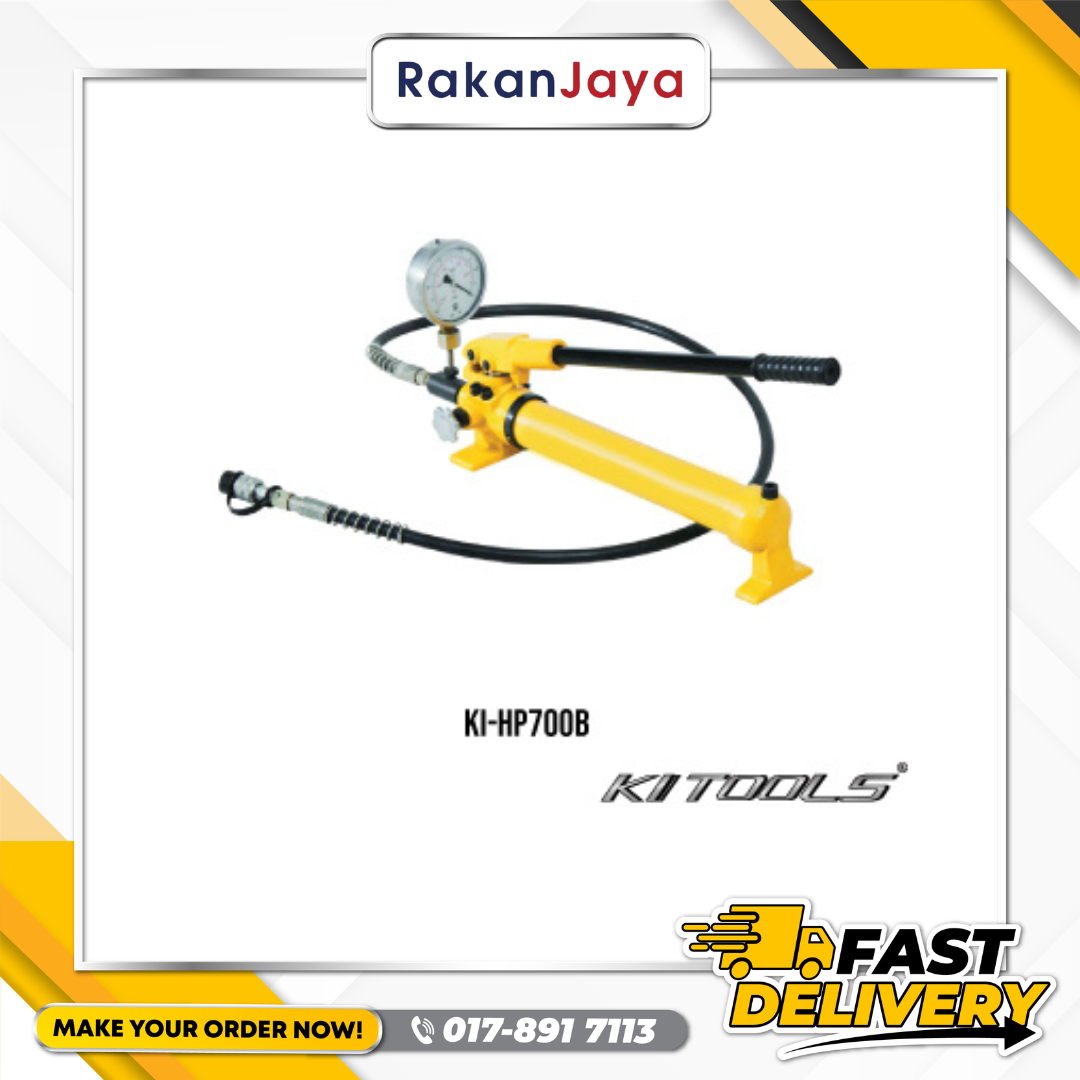

KI-HP700B

• Working Pressure : Low Pressure Stage 20 bar / High Pressure Stage 700 bar
• Oil displacement per stroke : Low Pressure Stage 13cm³ / High Pressure Stage 2.3cm³
• Reservoir : Oil capacity 1000cm³ /Useable Oil Capcity 700cm³
• Dimension : 600mm (L) x 120mm (B) x 240mm (H)
• Weight : 12.4kg

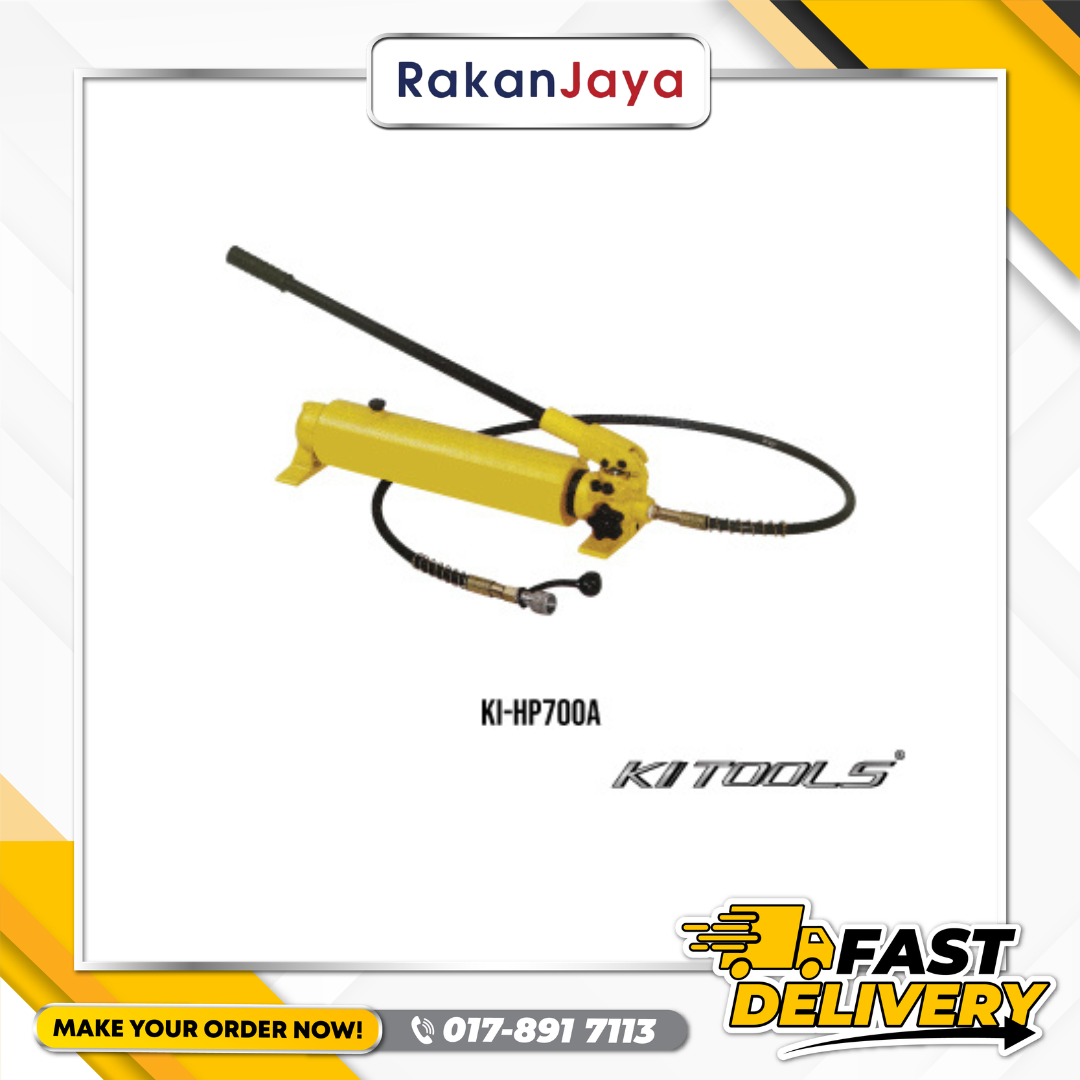

KI-HP700A

• Working Pressure : Low Pressure Stage 20 bar / High Pressure Stage 700 bar
• Oil displacement per stroke : Low Pressure Stage 13cm³ / High Pressure Stage 2.3cm³
• Reservoir : Oil capacity 3200cm³ /Useable Oil Capcity 2700cm³
• Dimension : 820m (L) x 180mm (B) x 180mm (H)
• Weight : 16.8kg

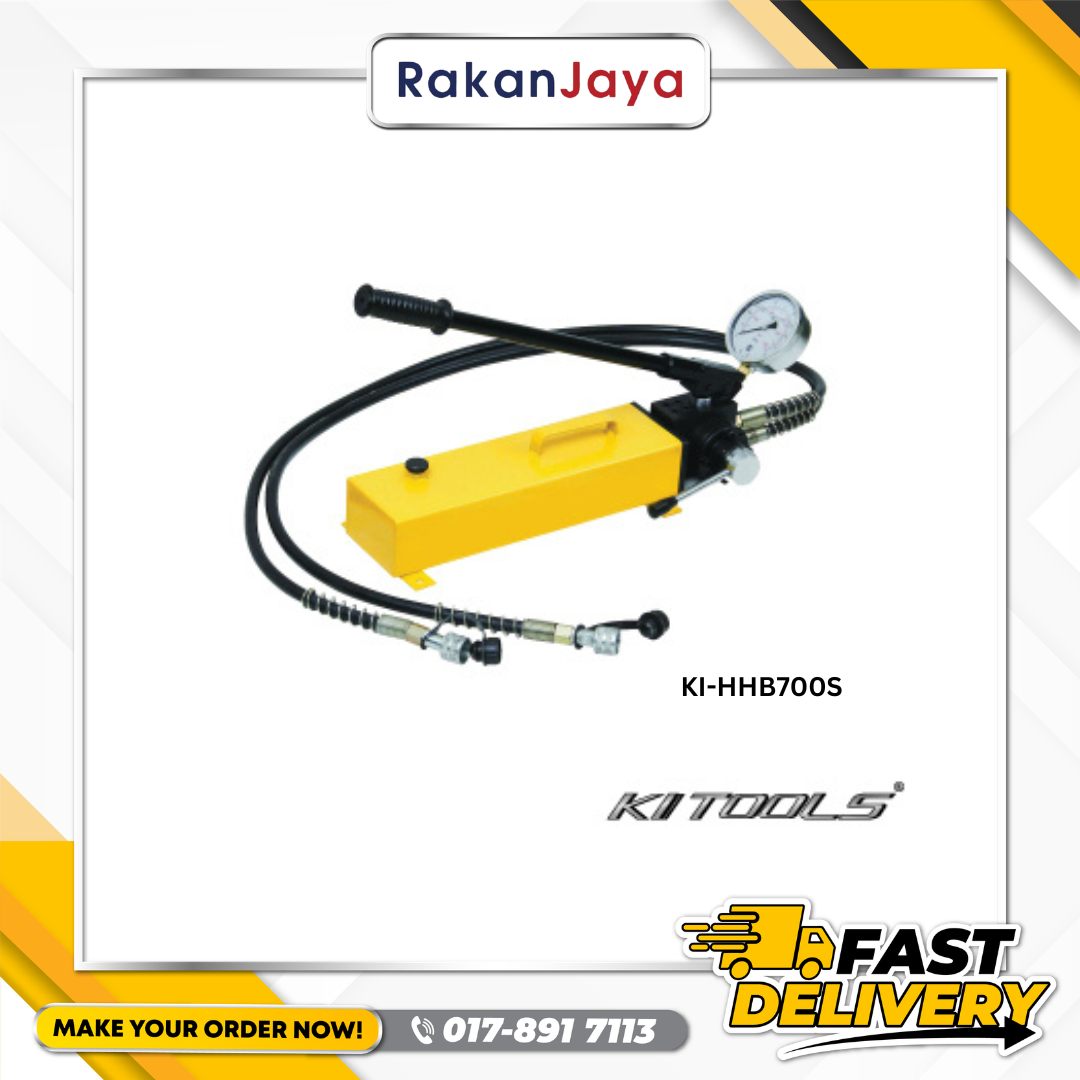

KI-HHB700S

• Robust and durable construction.
• Quick grip handle for easy transport.
• Two-speed hydraulic system for fast and easy operation.
• Reduced handle effort and ergonomic grip for less operator fatigue.
• Internal pressure relief valve for overload protection.
• Large oil capacities to power a wide range of cylinders or tools.
• Supplied with high pressure hose 1.8 meters, gauge and R2 3/8 quick coupler with dust cap.
