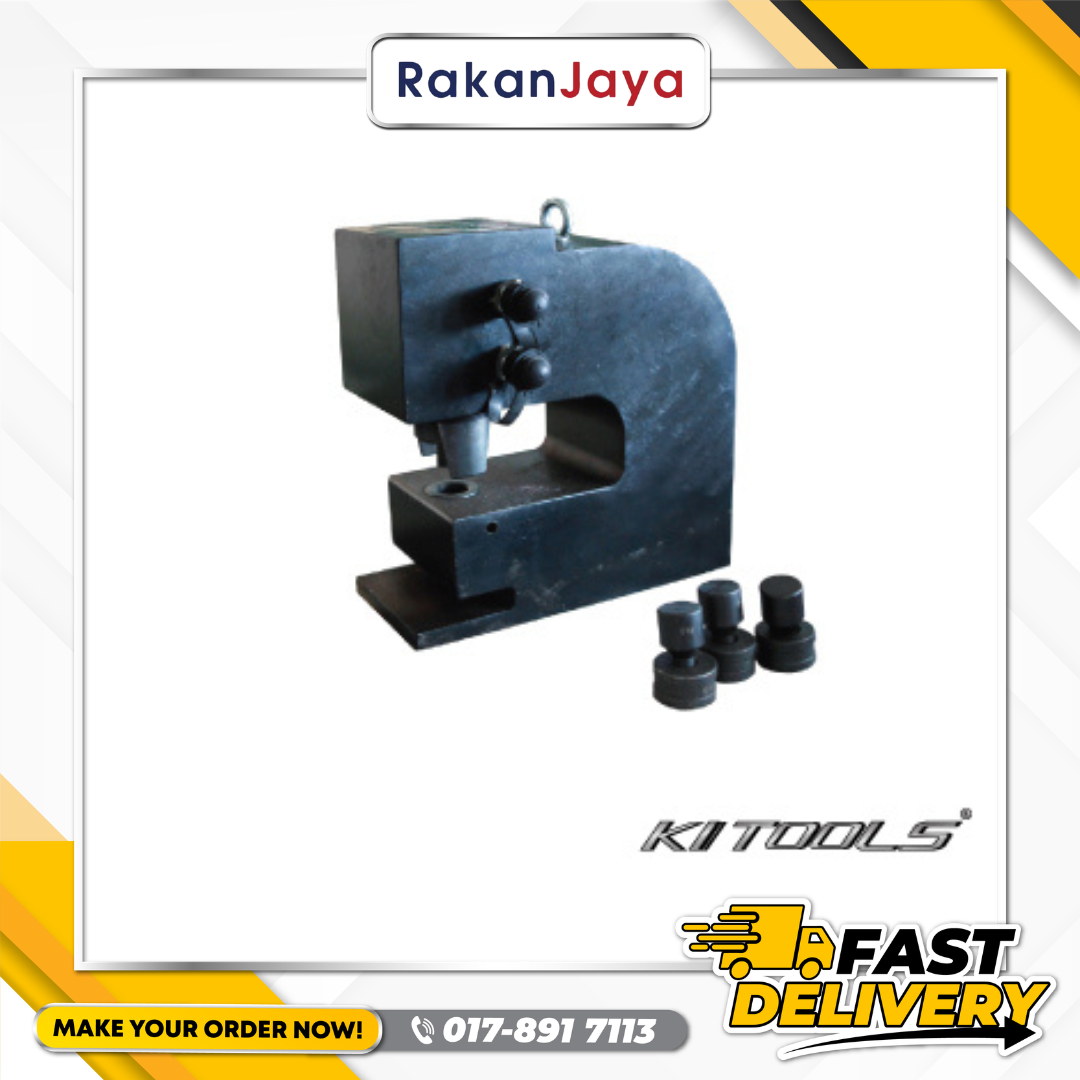

KI TOOLS HYDRAULIC BUSBAR PUNCHER (MODEL:KI-HHM80)

Description

MODEL : KI-HHM80

FEATURES :

• Strong durable construction.
• Double acting, hydraulic return.
• Quick set up punches & dies system.
• Flat and clean hole edge.
• Punch dies made of high-strength steel.
• Top eye bolt for easy handling on the job site.
• Large flat base for added stability.
• Supplied with R2 3/8 male coupler and dust cap.
• Operated by double-acting hydraulic pump with rated pressure 700 bar.

SPECIFICATIONS :

• Output Force : 50 ton
• Punch Dies (mm) : ø16, ø18, ø22, ø25
• Max. Thickness : Mild Steel 14 mm / Copper/Aluminium Busbar 16 mm
• Throat Depth : 16 mm
• Weight : 80 kg
• Packing size: 370 x 150 x 440 mm
