KI TOOLS HYDRAULIC CABLE CUTTERS

Description

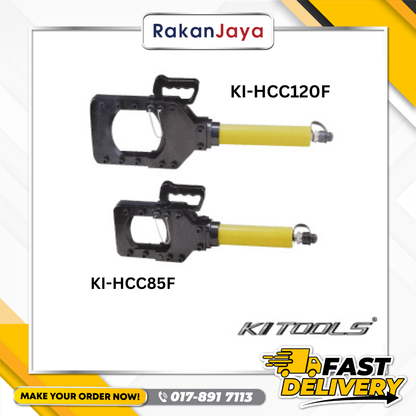

MODEL : KI-HCC120F, KI-HCC85F

FEATURES :

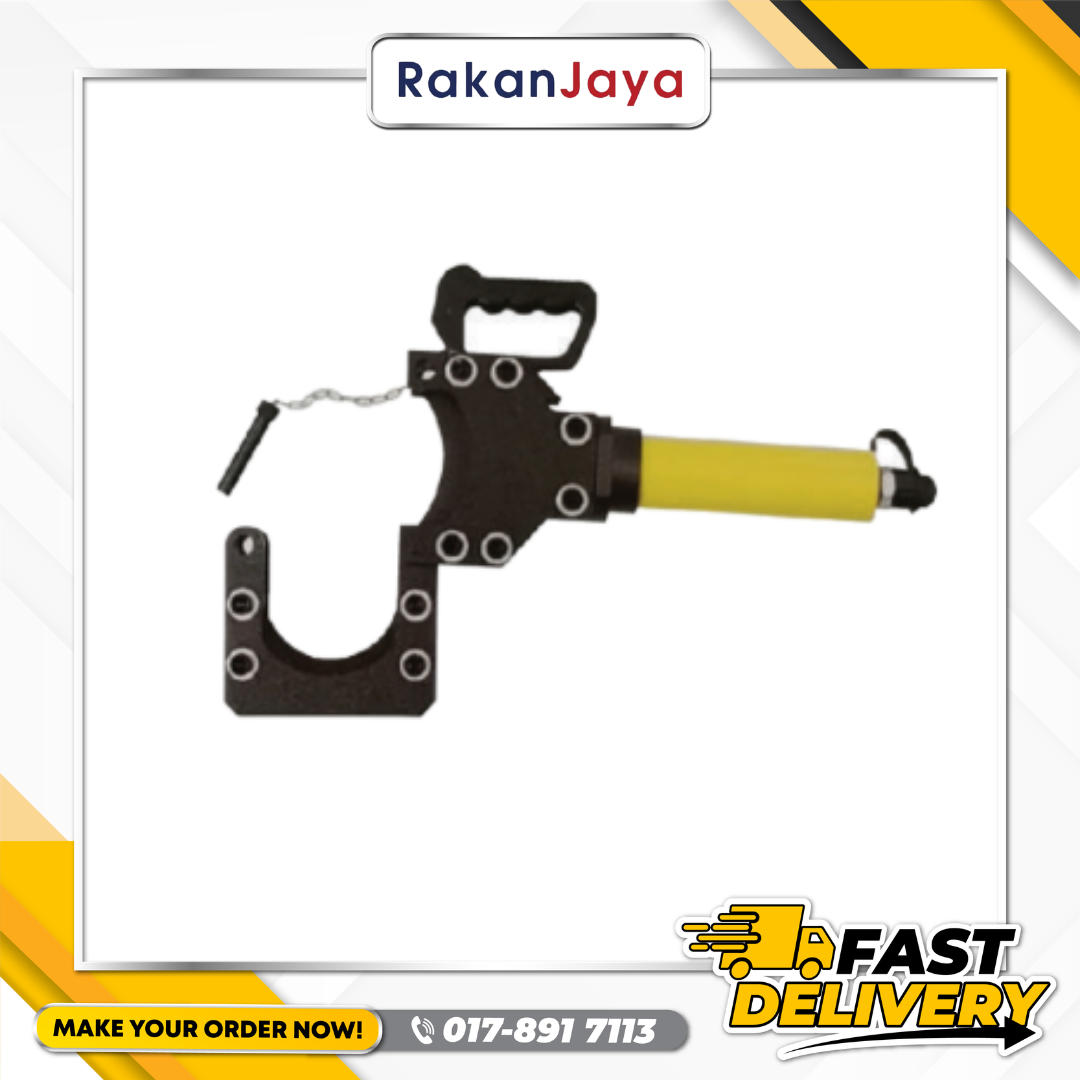

Hydraulic cable cutter heads with built-in safety valve. It is suitable for cutting armoured Al and Cu cables.

• Lock pin-type cutter head, blades can be replaced easily.
• Carry handle for easy shift in job sites.

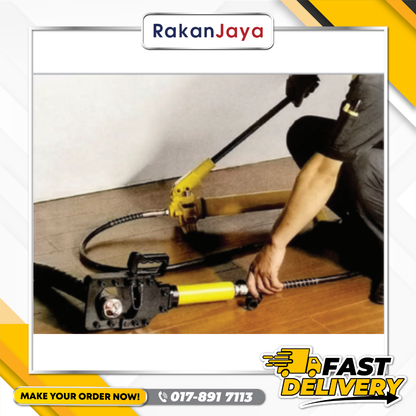

• More safety with remote operation.
• Operated by hydraulic pump with rated pressure 700 bar.

SPECIFICATION :

KI-HCC85F

• Output Force (Ton) : 8.5 Ton
• Cutting Range (mm) : ø85mm ( Copper, Aluminium/ armored cable)
• Weight (kg) :  12.1kg
• Packing Size (mm) : 535 x 260 x 110

KI-HCC120F

• Output Force (Ton) : 13.5 Ton
• Cutting Range (mm) : ø120mm ( Copper, Aluminium/ armored cable)
• Weight (kg) :  14 kg
• Packing Size (mm) : 630 x 270 x 100
