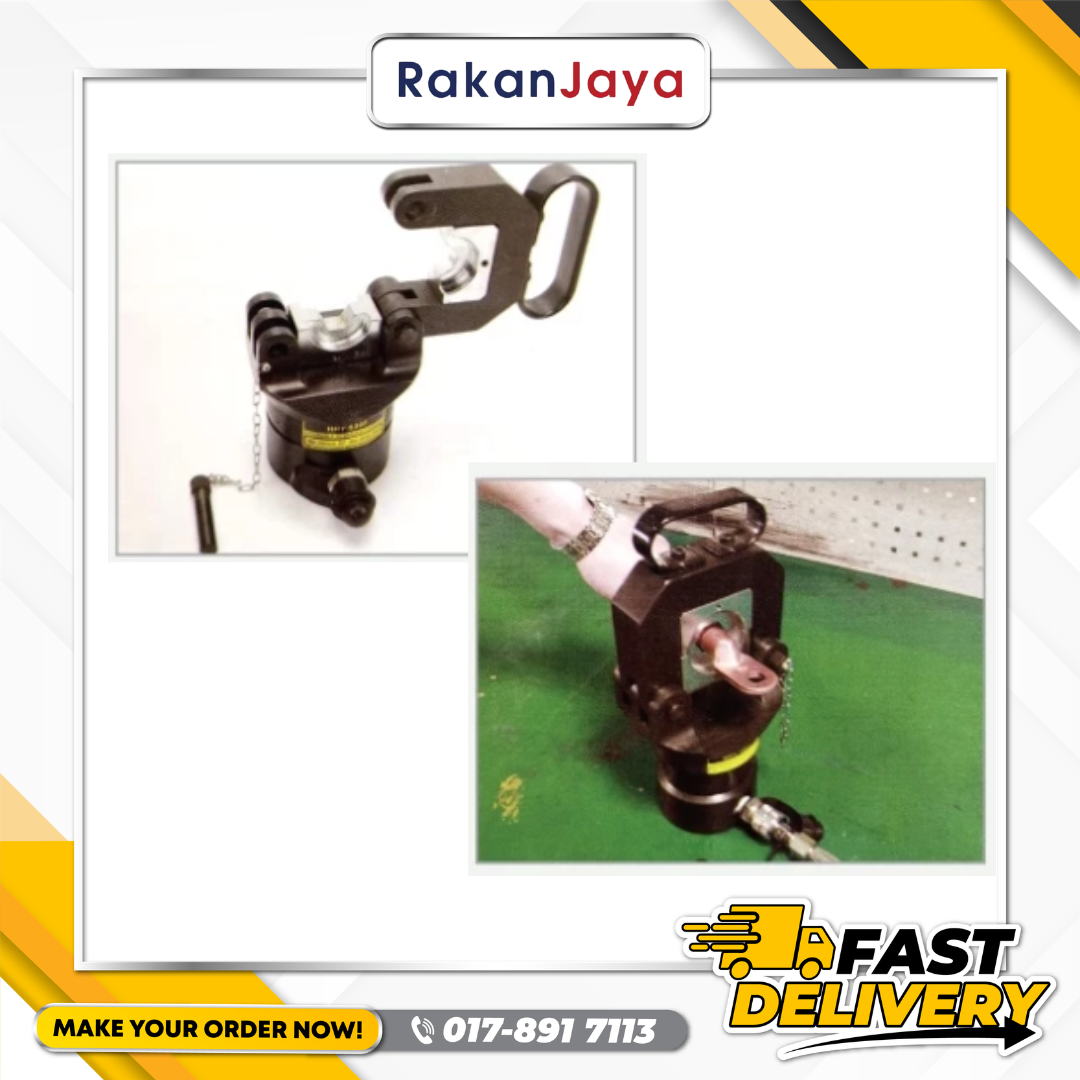

KI TOOLS HYDRAULIC CRIMPING HEADS

Description

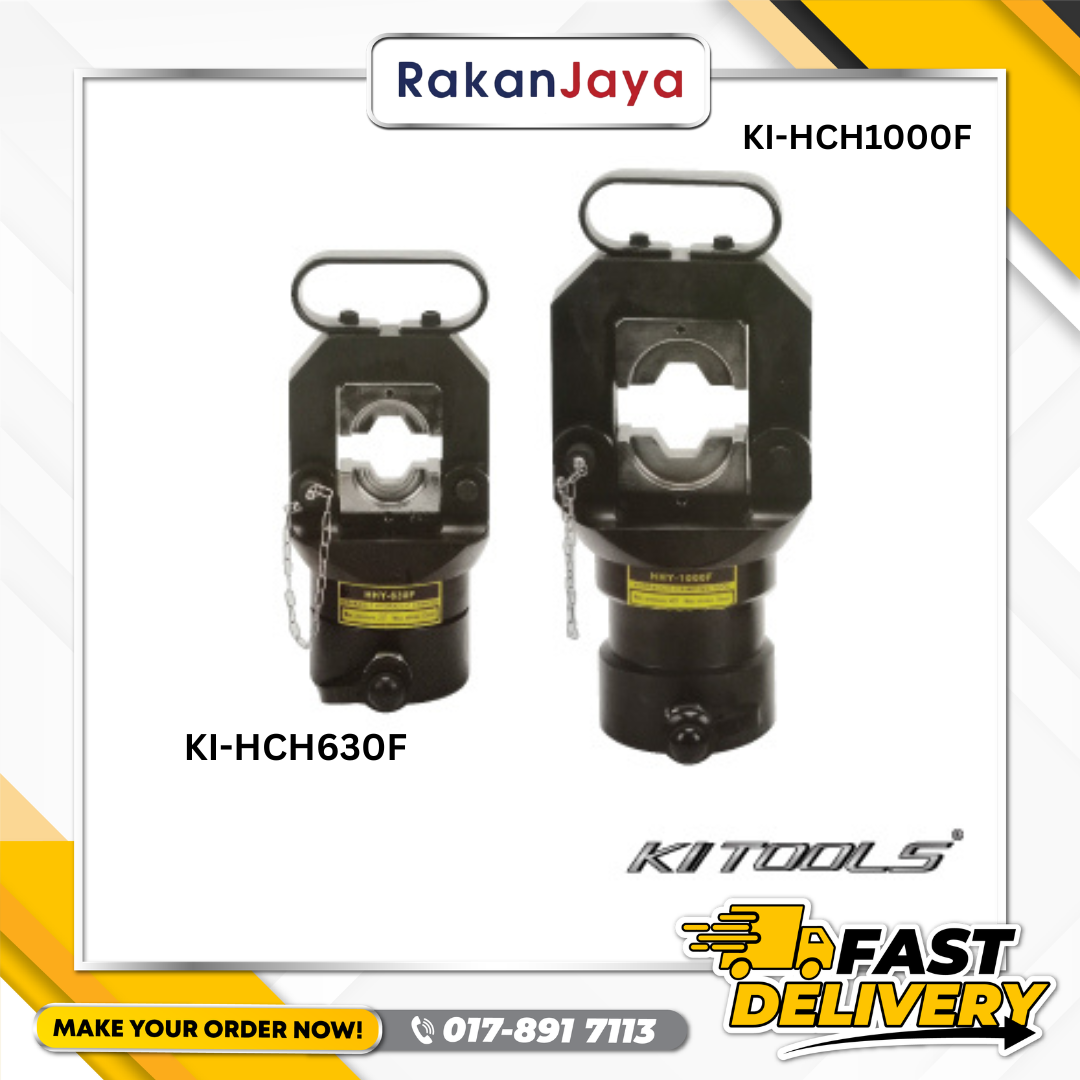

KI TOOLS HYDRAULIC CRIMPING HEAD (MODEL : KI-HCH630F / KI-HCH1000F)

For use in indoor and outdoor power distribution and transmission projects, splicing fittings, overhead underground conductors.

FEATURES :

• Yoke-type head design is solid and durable.
• Convenient handle make handling and hosting easier.
• Positive die locking mechanism holds dies firmly in place.
• Supplied with R2 3/8 male coupler and duct cap.
• Requires an external hydraulic pump with rated oil pressure of 700 bar.
• Single action cylinder with spring return.

SPECIFICATIONS :

MODEL : KI-HCH630F

• OUTPUT FORCE : 23 TON
• RANGE STOKE (MM) : 22
• CRIMPING RANGE (MM) : 150 - 630
• CRIMPING DIES (MM²) : 240, 300, 400, 500, 630
• CRIMPING PETTERN : HEXAGONAL TYPE
• WEIGHT : 15KG
• PACKING SIZE (MM) : 185 X 170 X 300

MODEL : KI-HCH110F

• OUTPUT FORCE : 30 TON
• RANGE STOKE (MM) : 30
• CRIMPING RANGE (MM) : 240 -1000
• CRIMPING DIES (MM²) : 400, 500, 630, 800, 1000
• CRIMPING PETTERN : HEXAGONAL TYPE
• WEIGHT : 24KG
• PACKING SIZE (MM) : 200 X 200 X 370
