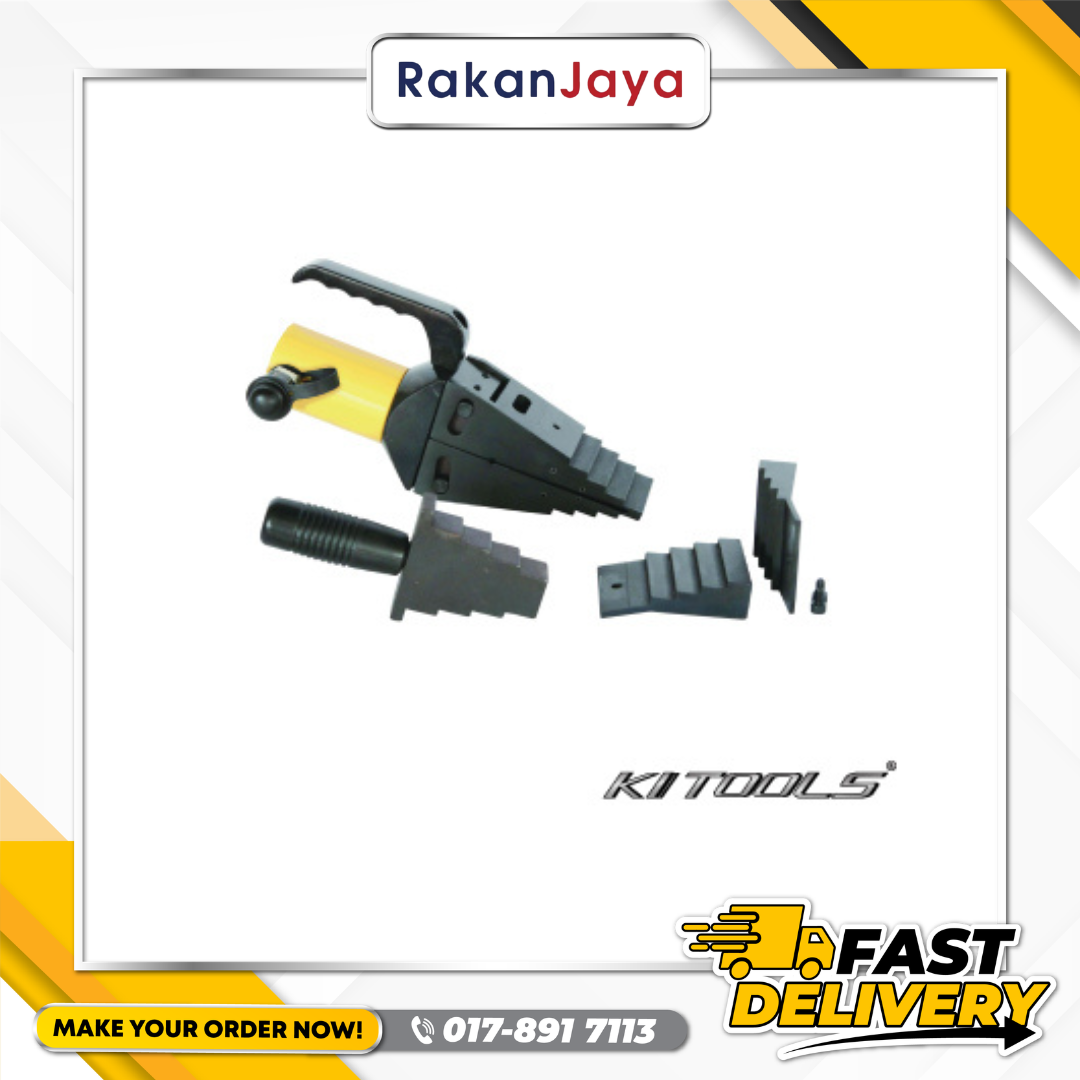

Friction-free, smooth and parallel wedges movement with unique interlock wedges design. Eliminates flange damage and risk of spreading arm failure.

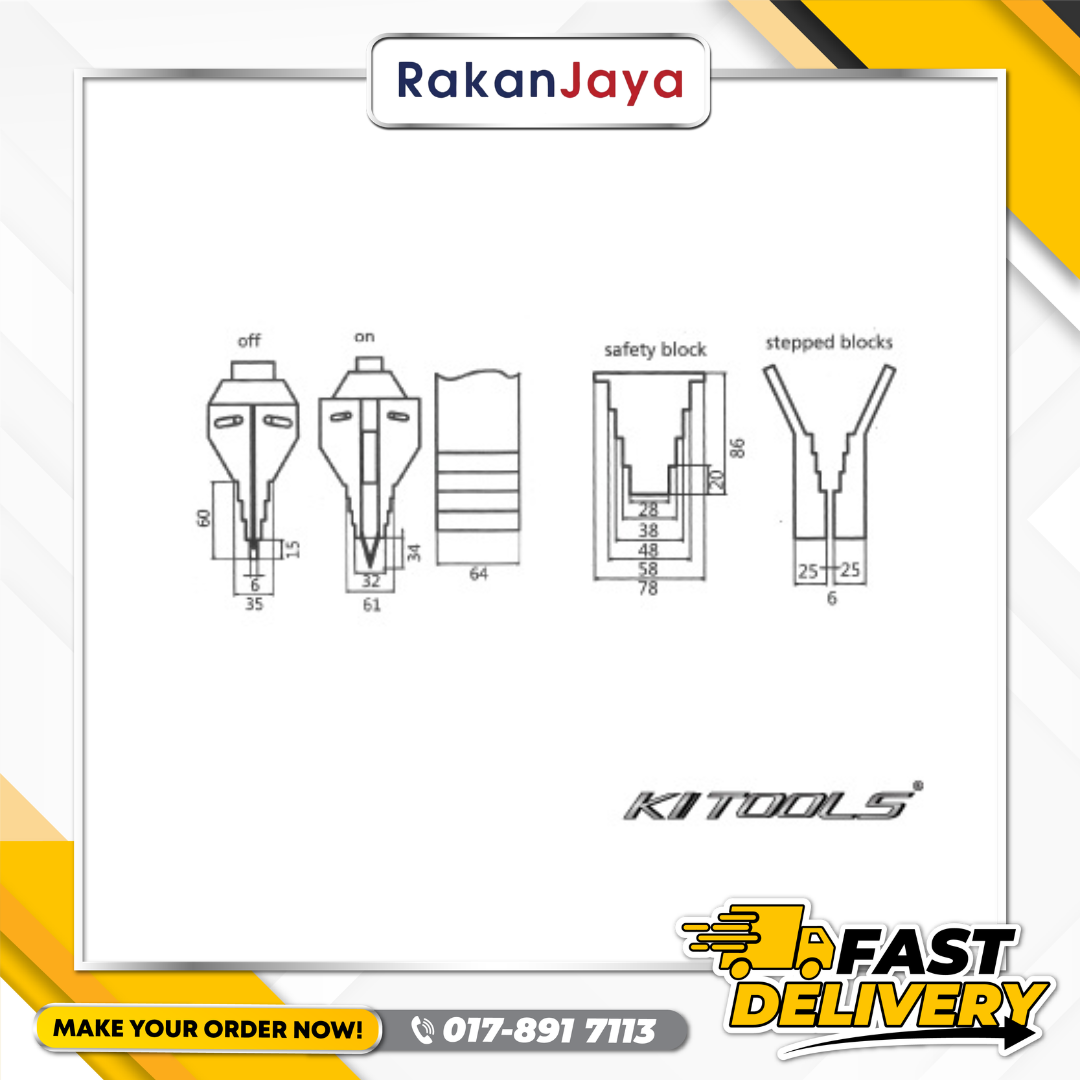

Stepped spreader arm design – each step can spread under full load Required very small access gap of only 6 mm Includes safety block and stepped blocks.
Operated by hydraulic pump with rated pressure of 700 bar
Use stepped blocks to increase wedge opening up to 81mm
Supplied with R2 3/8 male coupler and dust cap.
SPECIFICATIONS
Max spreading force 14Ton
Tip clearance 6mm
Max spread 81mm
Hydraulic type spreader
Oil capacity 70cm
G.W. 10.2Kg
Packing size 31x16x12cm
