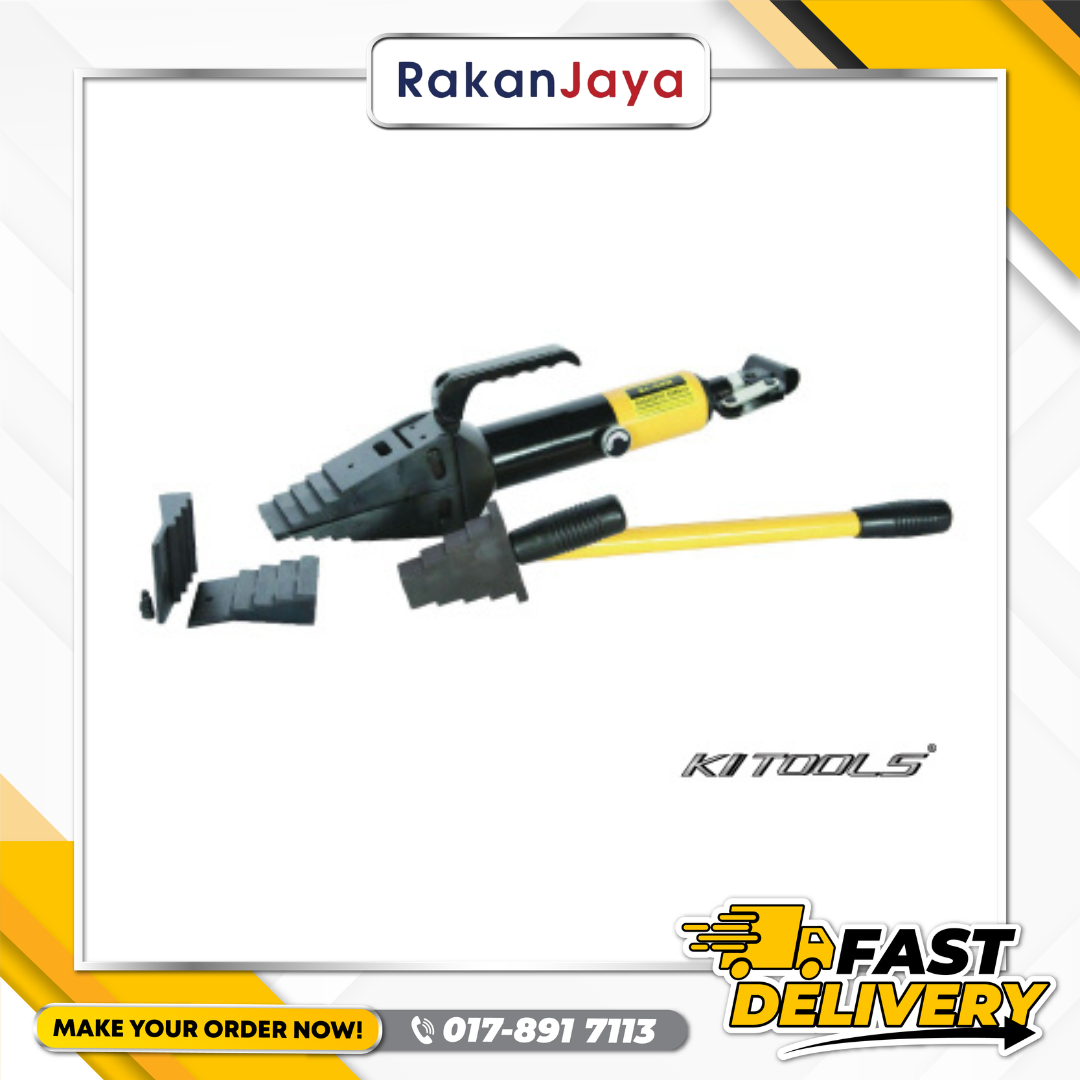

KI TOOLS HYDRAULIC WEDGE SPREADER – SELF-CONTAINED

Description

MODEL : KI-FS10

FEATURES :

Wedges Spreaders

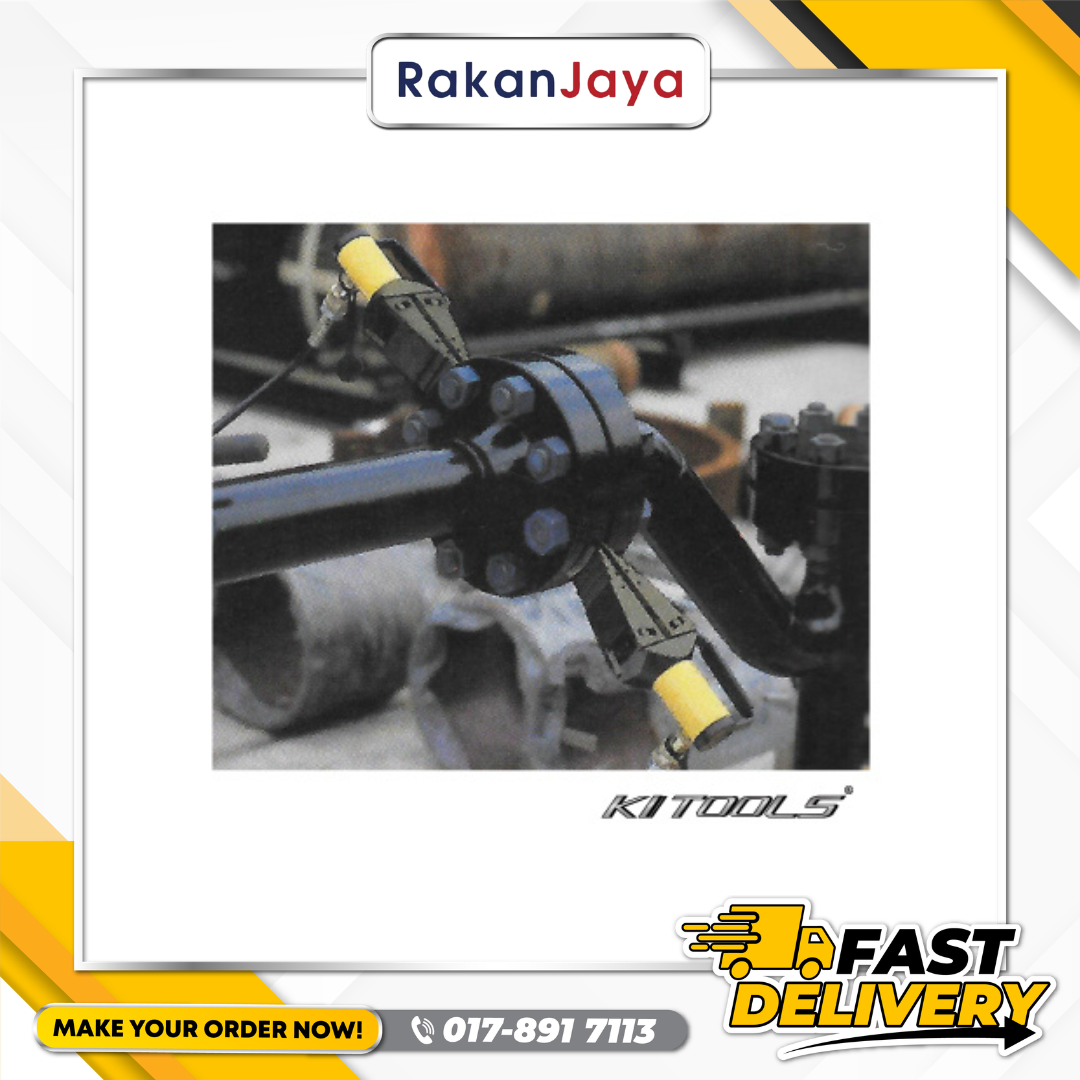

Friction-free, smooth and parallel wedges movement with unique interlock wedges design. Eliminates flange damage and risk of spreading arm failure.

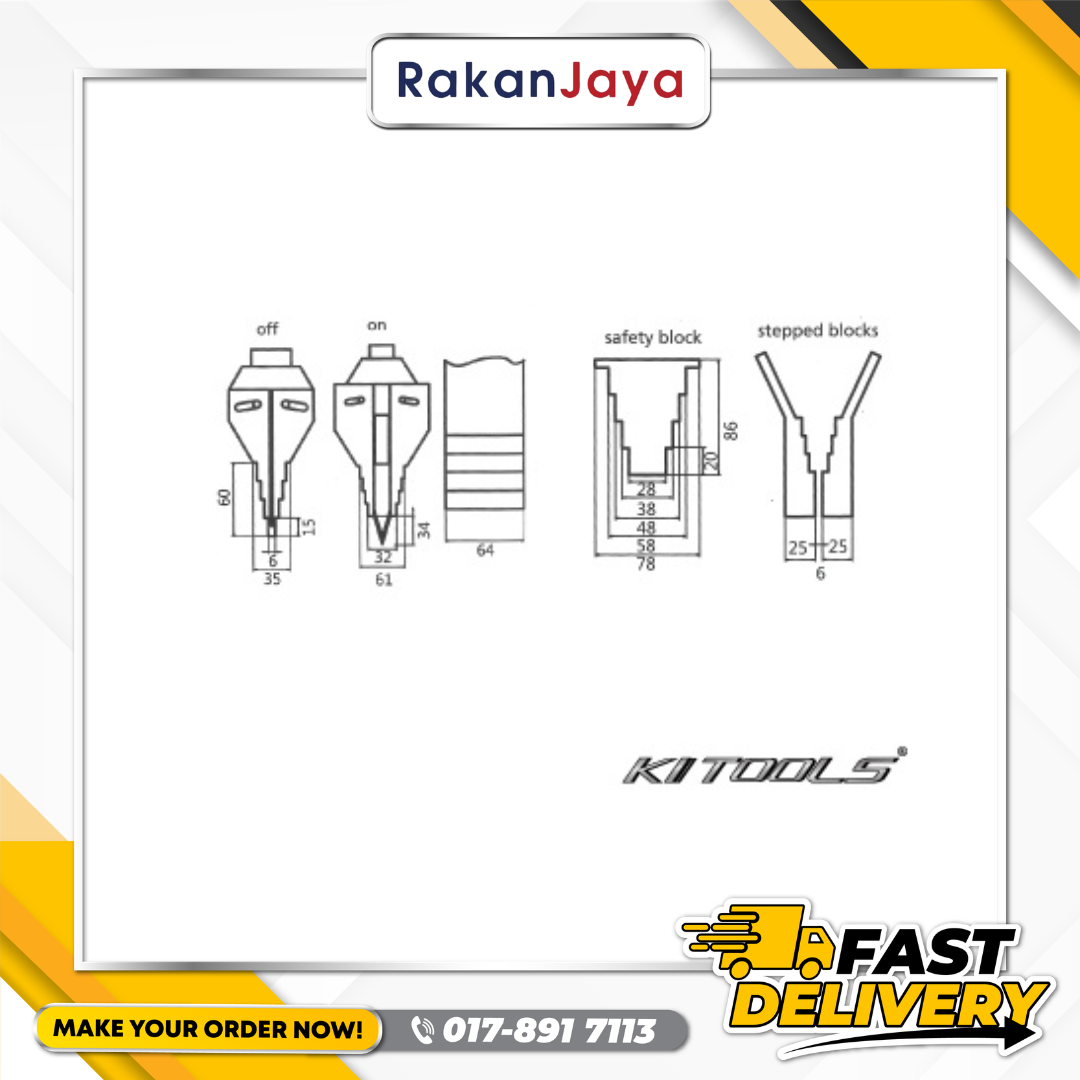

Stepped spreader arm design – each step can spread under full load Required very small access gap of only 6 mm Includes safety block and stepped blocks.

• Manual hydraulic operation.
• Use stepped blocks to increase wedge opening up to 81 mm.
• Safe and reliable hydraulic system.

SPECIFICATIONS :

• Max spreading force 10Ton
• Tip clearance 6mm
• Max spread 81mm
• Hydraulic type spreader
• Oil capacity 70cm
• G.W. 11.5Kg
• Packing size 53x17x11cm
