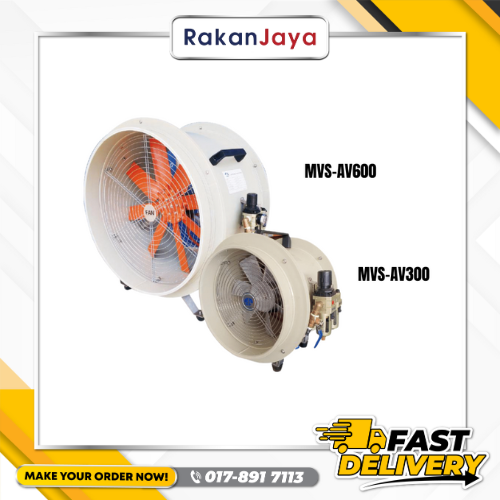

MVS PNEUMATIC VENTILATOR FAN AV600//AV300

Features:

• Piston or Vane Air Motor adaption

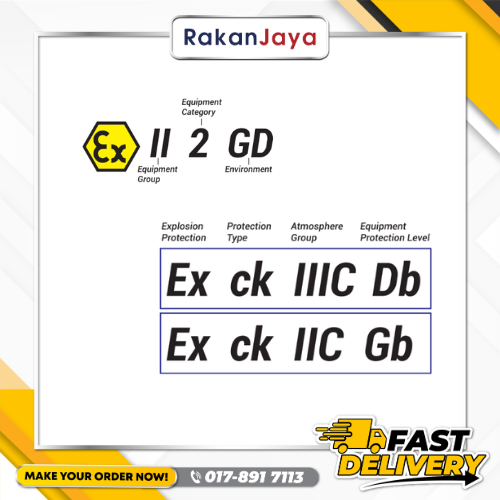

• 100% Explosion proof
• No spark during operations
• Hermatically sealed to prevent dirt and dust
• Instantly reversible
• Stepless speed adjustment

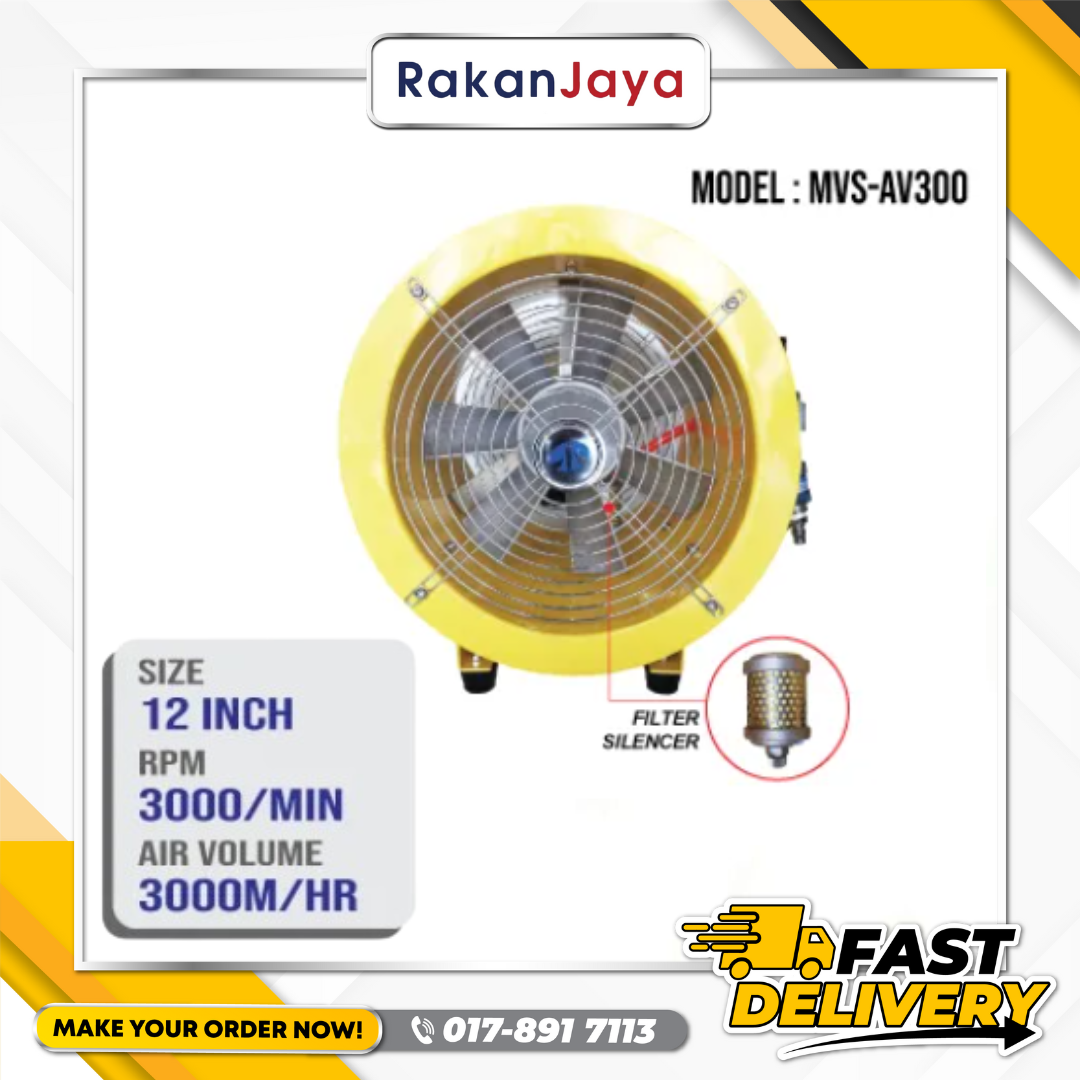

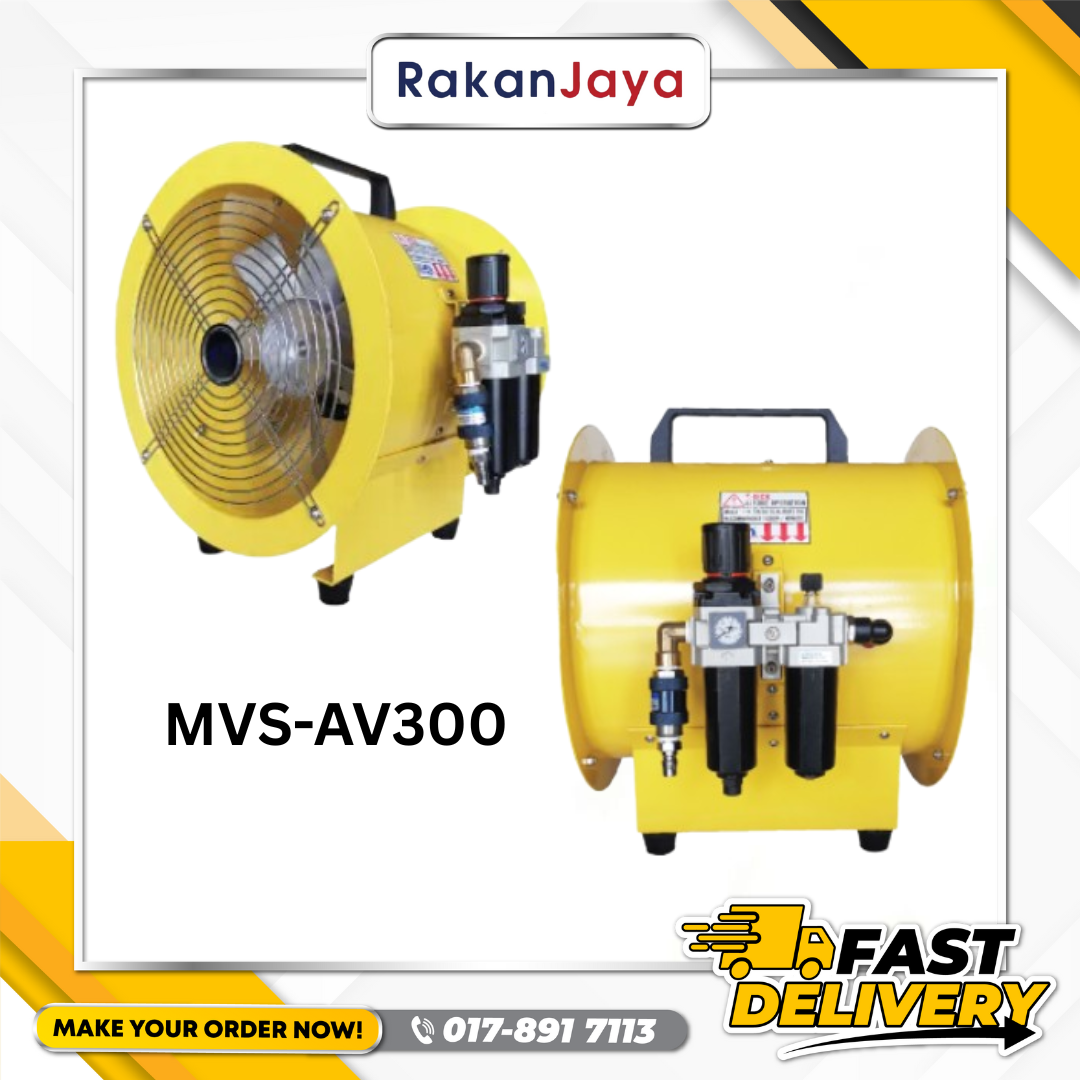

SPECIFICATION MVS-AV300 :

• Size : 12 ”
• RPM : 3000/min
• Air Volume : 3000m / hr
• Air Comsumption : 30CFM
• Material for Casing : Aluminium
• Material for Fan Blade : Aluminium
• Tubing : 12mm
• FRL : 3/8” (AUTO DRAIN)

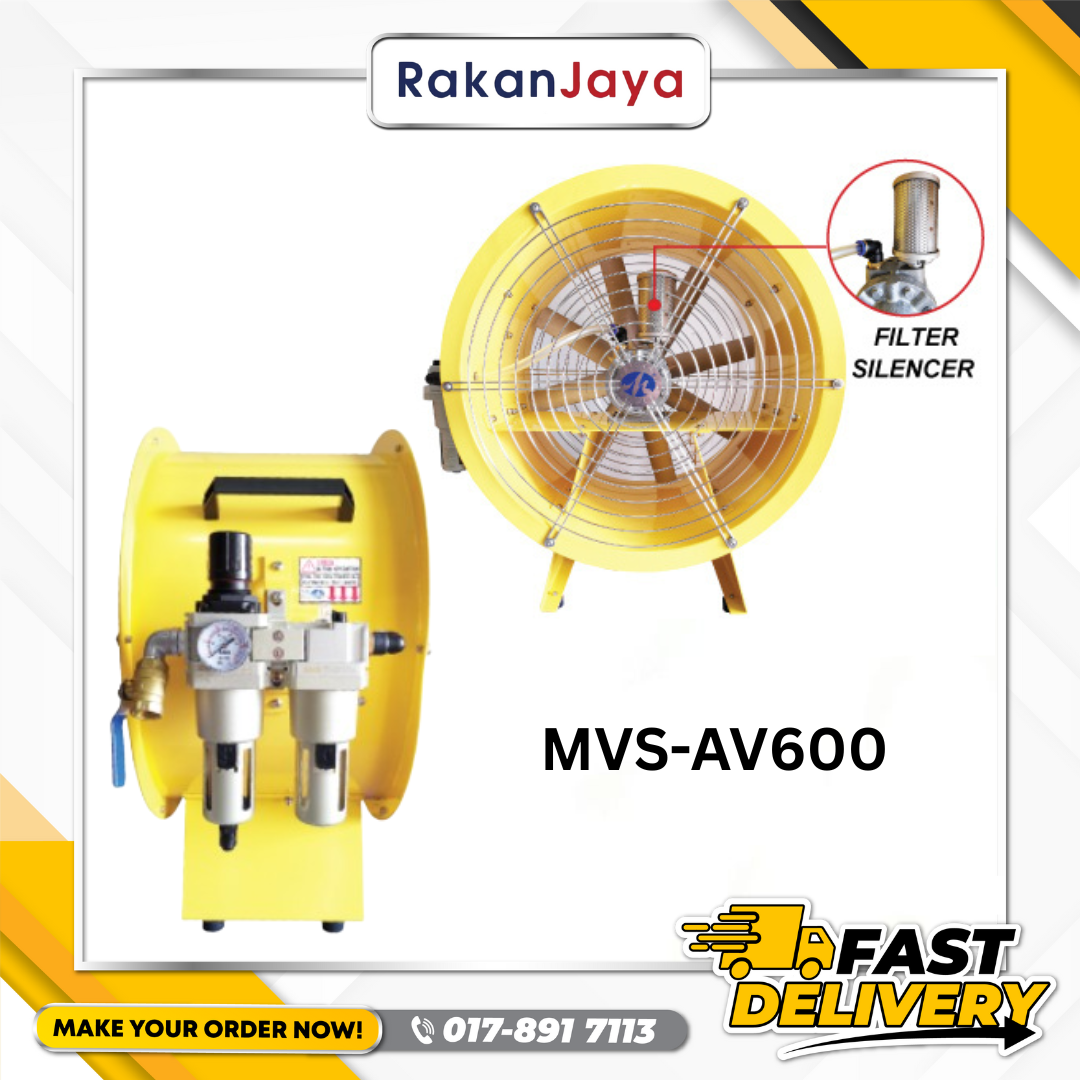

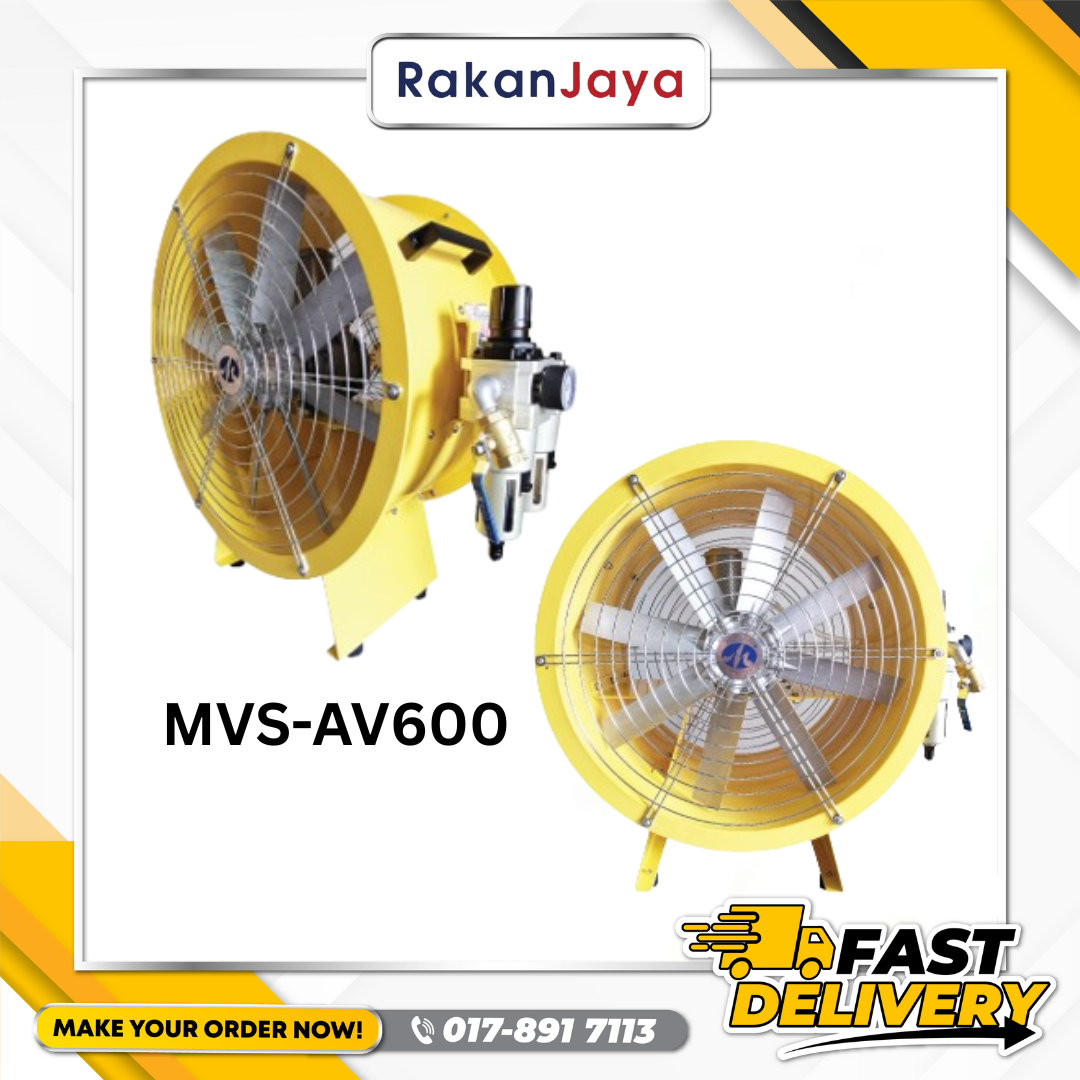

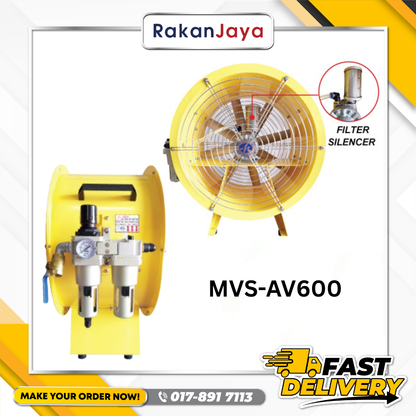

SPECIFICATION MVS-AV600 :

• Working Pressure : 6 bar
• Size : 24 ”
• RPM : 2500/min
• Air Volume : 13500m / hr
• Air Comsumption : 175 CFM
• Material for Casing : Aluminium
• Material for Fan Blade : Aluminium
• Tubing : 16mm
• FRL Regulator : 3/4”

APPLICATION :

• Our ventilators are engineered to operate efficiently in volatile and demanding conditions, including chemical plants and high-temperature workshops, ensuring optimal air quality and safety.
• Ideal for use in highly explosive zones or flammable areas environments such as paint factories and petrochemical sites where fire hazards are a concern.
