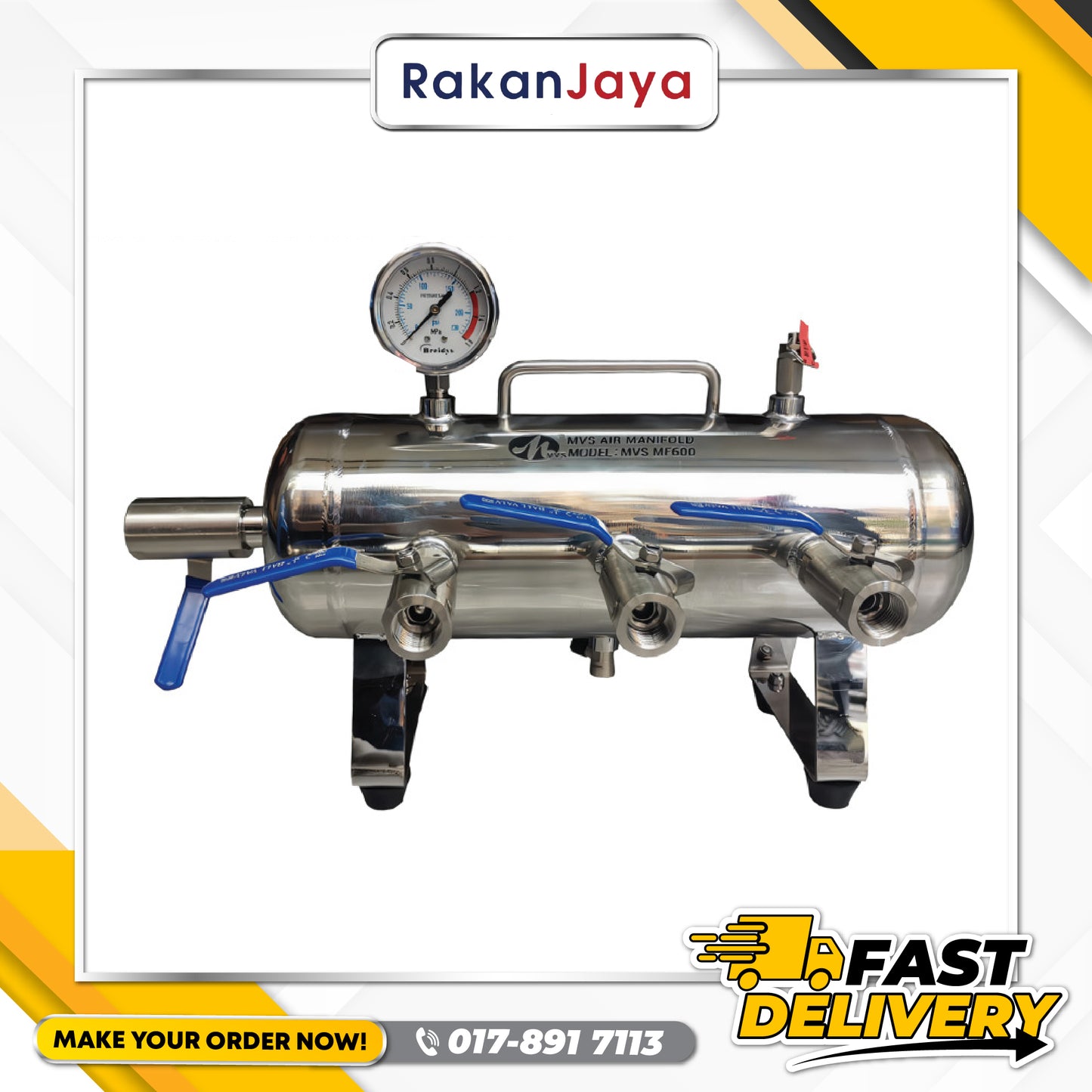

MVS PORTABLE 6 PORT AIR MANIFOLD (MODEL : MVS-MF600)

Features :

• MVS MF600 is particularly convenient for carrying into confined spaces.
• It can be neatly stored in large toolboxes.
• It can be fitted with universal (chicago) couplers or industrial quick disconnect couplers.
• It can be used in combination with other air manifolds to provide as many outlets as required and helps to keep the work site to be safer and more organized by having only one supply hose leading to the work area.
• Safety auto pressure relief valve to prevent excessive pressure buildup.
• It comes with a gauge to monitor working pressure and a drain port to vent water droplets.
• They can also be used with fans or blowers as a velocity accelerator for long duct distances.

• Increase efficiency and reduce the need for long runs of pipe or hose.

Specification :

• Pressure Gauge : 1.6 MPa
• Tank Capacity : 5 Litres
• Inlet : 1 x 3/4” BSP
• Outlet : 6 x 1/2” BSP
• Air Hose Connection : Chicago Claw Coupling
• Ball Valve : 1/2” Stainless Steel
• Safety Release Valve
• Drain Port
• Working Pressure : 150 psi
• Test Pressure : 200 psi
• Tank Dimension : D133 x L400mm
